| GVS9000 1XU Pro² ingest station specifications |
 |
Video Input Modes:
• SMPTE 259, SMTPE 292, SMTPE 296 and SMTPE424
• Rec/Play time Play visually lossless
• HD SDI and SD SDI
• HDMI 30bit/pixel and 36bits/pixel
• 1080P 60, 1080P 59.94, 1080P 50, 1080P 30, 1080P 29.97, 1080P 25, 1080P 24, 1080P 23.98, 1080PsF 24, 1080PsF 23.98, 1080i 30, 1080i 29.97, 1080i 25, 1080i 25, 720p 59.94, and 720p 50
• Analog HD and Analog SD
• 12-bit HD analog component
• 12-bit SD analog composite S-Video SD D1 720x486 720p 60 720p 59.9 720x576 625i 525i
Video Output Modes:
• SMPTE 259, SMTPE 292, SMTPE 296 and SMTPE424
• Two Independent SD and HD SDI Single Link output
• HDMI 30bit/pixel and 36bits/pixel
• Analog Component
• Dual link 4:4:4 (RGB) I/O (opt)
• Dual link 4:2:2:4 Video + Key (YUV) I/O (opt)
• 1080P 60, 1080P 59.94, 1080P 50, 1080P 30, 1080P 29.97, 1080P 25, 1080P 24, 1080P 23.98, 1080PsF 24, 1080PsF 23.98, 1080i 30, 1080i 29.97, 1080i 25, 1080i 25, 720p 59.94, and 720p 50
|
Analog: SD and HD Output, 12-bits, BNC:
• HD: YPbPr, RGB
• SD: YPbPr, RGB (component mode)
• Composite/YC (composite mode)
Audio:
• Quantization: 16-bit, 20-bit, 24-bit selectable
• 8 or 16 channels S/P DIF BNC audio SDI embedded
• 2 or 8 channels of AES/EBU XLR audio 48kHz or 96kHz
GVS9000 1XU Pro² technical specifications:
• 4GB Dual Fibre Channel
• 650 Watt Power supplies
Genlock:
• Analog: SD: Black Burst, Bi-Level; HD: Tri-Level
• Digital: SD : SD SDI; HD : HD-SDI, QuLink
Play Control:
• Dual 10/100/1000BT Network and for small file transfer

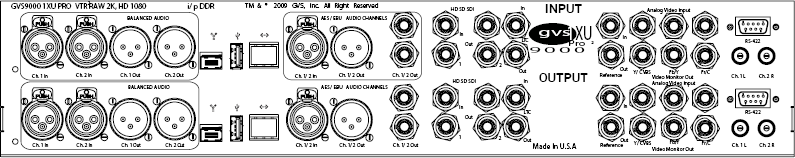

Interface:
• RS-422: D-sub 9-pin Control Master and Slave
• RS-232: 3-sub 9-pin
• FireWire 800 two port
|
• USB 2.0 two ports
• LTC In/Out BNC
Operating shock:
• 2940 m/SEC (300 G)/2ms
• 1568 m/SEC (160 G)/1ms
Non-operating shock:
• 9800 m/sec2 (1,000 G)/1ms
Electrical and environmental requirements:
• Meets ENERGY STAR requirements
• Line voltage: 450W 100-125V AC or 200-240V AC
• Frequency: 50Hz to 60Hz, single phase
• Maximum current: 4.25A (low-voltage range)
• Operating temperature: 50º to 95ºF
(10º to 35ºC)
• Relative humidity: 5% to 95% noncondensing
• Maximum altitude: 10,000 feet
Size and weight:
• Height: 1.75 inches
• Width:17.65 inches
• Depth: 21 inches
• Weight: 25/per I/O lb |
The chart below is designed to provide viable information for calculating the storage requirements for your production environment based on 4.0TB storage and the total hours it delivers at different compression rates. It also gives a breakdown of how much storage you will need for
48 hrs. of video at these compression rates. |
| Time/Size |
Compression |
Data Rate |
Storage For |
15 Min. Require |
Storage Required |
4 TB Provides |
48 Hrs. Requires |
| Video Format |
Rate |
MB/sec |
1 Min/MB |
GB |
1 Hour/GB |
Hours |
STORAGE |
| SMPTE 259 |
1 to 1 |
270 |
16,200 |
243 |
972 |
4.1 hr |
46,656 GB |
| 1080p 4.4.4 10-bit 29.97 |
1.08 to 1 |
249 |
14,930 |
224 |
896 |
4.5 hr |
42,998 GB |
| 1080p 4.4.4 10-bit 25 |
1.3 to 1 |
207 |
12,420 |
186 |
745 |
5.4 hr |
35,770 GB |
| 1080p 4.4.4 10-bit 23.98 |
1.4 to 1 |
199 |
11,940 |
179 |
716 |
5.6 hr |
34,387 GB |
| 1080i 4.2.2 10-bit 59.94 |
1.5 to 1 |
166 |
9,953 |
149 |
597 |
6.7 hr |
28,666 GB |
| 1080i 4.2.2 10-bit 50 |
2 to 1 |
138 |
8,280 |
124 |
497 |
8.1 hr |
23,846 GB |
| 1080p 4.2.2 10-bit 23.98 |
2 to 1 |
133 |
7,980 |
120 |
479 |
8.4 hr |
22,982 GB |
| 720p 4.2.2 10-bit 59.94 |
2 to 1 |
133 |
7,980 |
120 |
479 |
8.4 hr |
22,982 GB |
| 1080i 4:2:2 8-bit 59.94 |
2 to 1 |
124 |
7,465 |
112 |
448 |
8.9 hr |
21,500 GB |
| 1080i 4.2.2 8-bit 50 |
3 to 1 |
104 |
6,221 |
93 |
373 |
10.7 hr |
17,916 GB |
| 720p 4.2.2 8-bit 59.94 |
3 to 1 |
100 |
6,000 |
90 |
360 |
11.1 hr |
17,280 GB |
| 1080p 4.2.2 8-bit 23.98 |
3 to 1 |
100 |
6,000 |
90 |
360 |
11.1 hr |
17,280 GB |
| ProRes 4444 |
6 to 1 |
41 |
2,475 |
37 |
149 |
26.9 hr |
7,128 GB |
| MJPEG |
6 to 1 |
45 |
2,700 |
41 |
162 |
24.7 hr |
7,776 GB |
| MPEG2 |
8 to 1 |
34 |
2,025 |
30 |
122 |
32.9 hr |
5,832 GB |
| ProRes 422 (HQ) 10-bit |
10 to 1 |
28 |
1,680 |
25 |
65 |
39.7 hr |
4,838 GB |
| SD 10-bit Uncompressed |
10 to 1 |
28 |
1,680 |
25 |
101 |
39.7 hr |
4,838 GB |
| DNxHD |
12 to 1 |
22 |
1,312 |
20 |
79 |
50.8 hr |
3,780 GB |
| SD 8-bit Uncompressed |
13 to 1 |
21 |
1,242 |
19 |
75 |
53.7 hr |
3,577 GB |
| ProRes 422 10-bit |
15 to 1 |
18 |
1,080 |
16 |
65 |
61.7 hr |
3,120 GB |
| ProRes 422(LT) AVCHD |
21 to 1 |
13 |
765 |
11 |
46 |
39.7 hr |
2,203 GB |
| DVCPRO HD |
22 to 1 |
13 |
750 |
11 |
45 |
88.9 hr |
2,160 GB |
| DV50 |
43 to 1 |
6 |
375 |
6 |
23 |
177.8 hr |
1,080 GB |
| ProRes 422 (Proxy) 1920x1080 |
48 to 1 |
6 |
338 |
5 |
20 |
197 hr |
972 GB |
| ProRes 422 (Proxy) 1280x720 |
60 to 1 |
5 |
270 |
4 |
16 |
247 hr |
768 GB |
| MPEG2 |
65 to 1 |
4 |
240 |
4 |
14 |
277.8 hr |
691 GB |
| DV25 |
87 to 1 |
3 |
186 |
3 |
11 |
358.4 hr |
536 GB |
| MPEG1 |
194 to 1 |
1 |
83 |
1 |
5 |
799.4 hr |
240 GB |
| MPEG-4 H.264 |
270 to 1 |
1 |
60 |
1 |
4 |
1,111 hr |
173 GB |
Copyright © 2009 GVS Inc. All rights reserved. Other product and company names mentioned herein may be trademarks of their respective companies.
Product specifications are subject to change without notice. |
